E-BAND RESTRICTOR

E-BAND RESTRICTOR

Analog EBRs (E-Band Restrictors)

E-Band Restrictors are magnetically operated, remotely controlled CD3’s that use the same technology as our flagship product, the G.L.O.V.E. E-Bands come in two models, the EBA (bi-cep and lower leg) and the EBL (thigh area). Both are effective for transporting those just brought into custody, prisoner transport, court room proceedings, medical visits or hospital stays.

E-Bands bring suspects/inmates into compliance when committing acts of aggression or attempting escape. Each device comes with two magnetic keys and two remote controls that have a range of over 150 yards. This is a proven, discreet, effective, and yet humane technology to control subjects especially when time is of the essence.

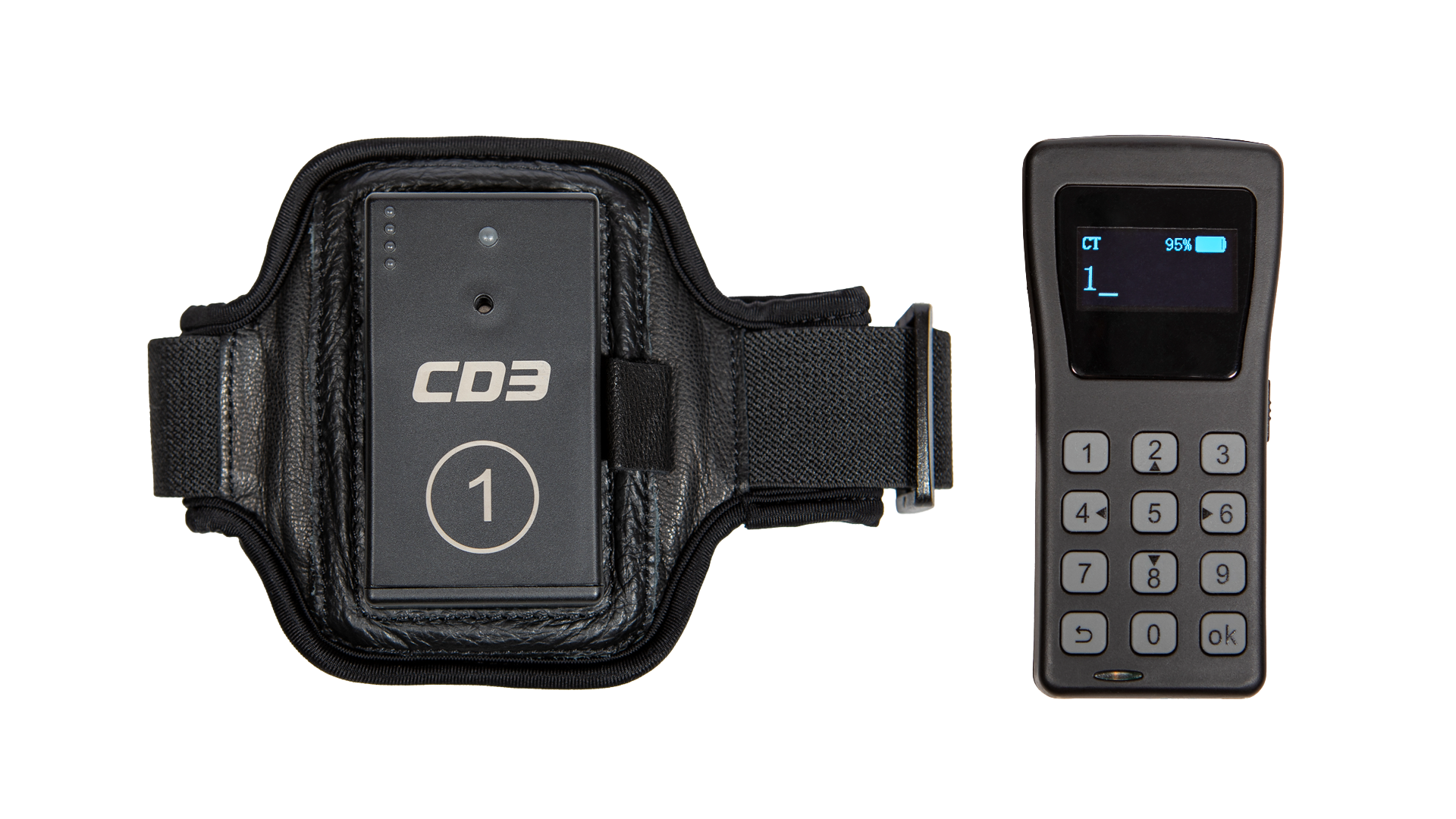

Single-Frequency and Multi-Frequency Digital EBRs (E-Band Restrictors)

With all the benefits of our original E-Band CD3 technology, our digital E-Bands will record events, leave no injury and provide an audible sound during activation or can be given as a warning to individuals starting to demonstrate non-compliant or aggressive behavior. The MF sets can stimulate one or all the subjects in the set as each device has its own discreet and one group frequency. Every device comes with two magnetic keys and two remote controls that have a range of over 150 yards. Compliant Technologies’ password protected proprietary software reads the device’s remote controls to gain access to event information.

E-Band Specifications

Analog EBRs (E-Band Restrictors)

  • Composition: High grade calf or goat skin and man-made materials
  • Sizes: Adjustable
  • Models: Two models to choose from: EBA (bicep or lower leg) and EBL (thigh area)
  • Activation: 2-3 seconds on and off via magnetic key (2 included per device)
  • Duration of stimulation: 2 hours
  • Duration of charge: from 24 hours (standby mode) to months
  • Battery: 3.7 Volt Lithium Ion
  • Charge time: 4 hours from zero, Micro-Processor good for 2,000 recharges
  • Locking mechanism: Snap-type with 2-digit combination
  • Remote control frequency: analog UHF
  • Remote control range: 2 included with 150 yards (500 feet) line of sight range
  • Remote control battery: 9 Volt
  • Maximum Voltage: 210-320V (cannot go above 380V)
  • Maximum Current: 0.9-1.5A
  • Pulse Duration (μS): 105-115 (.000115 second)
  • Pulse Charge (μC) 84-125 (.000125 Amp-Second)
  • Pulse repetition rate (pps): 29.7 - 30.8
  • Duty Cycle (%): 0.32 - 0.35
  • Operating Temperature: 14°F to 122°F (-10°c to 50°c)

Single Frequency and Multi-Frequency Digital EBRs (E-Band Restrictors)

  • Composition: High grade calf or goat skin and man-made materials
  • Sizes: Adjustable
  • Models: Two models to choose from: EBA (bicep or lower leg) and EBL (thigh area)

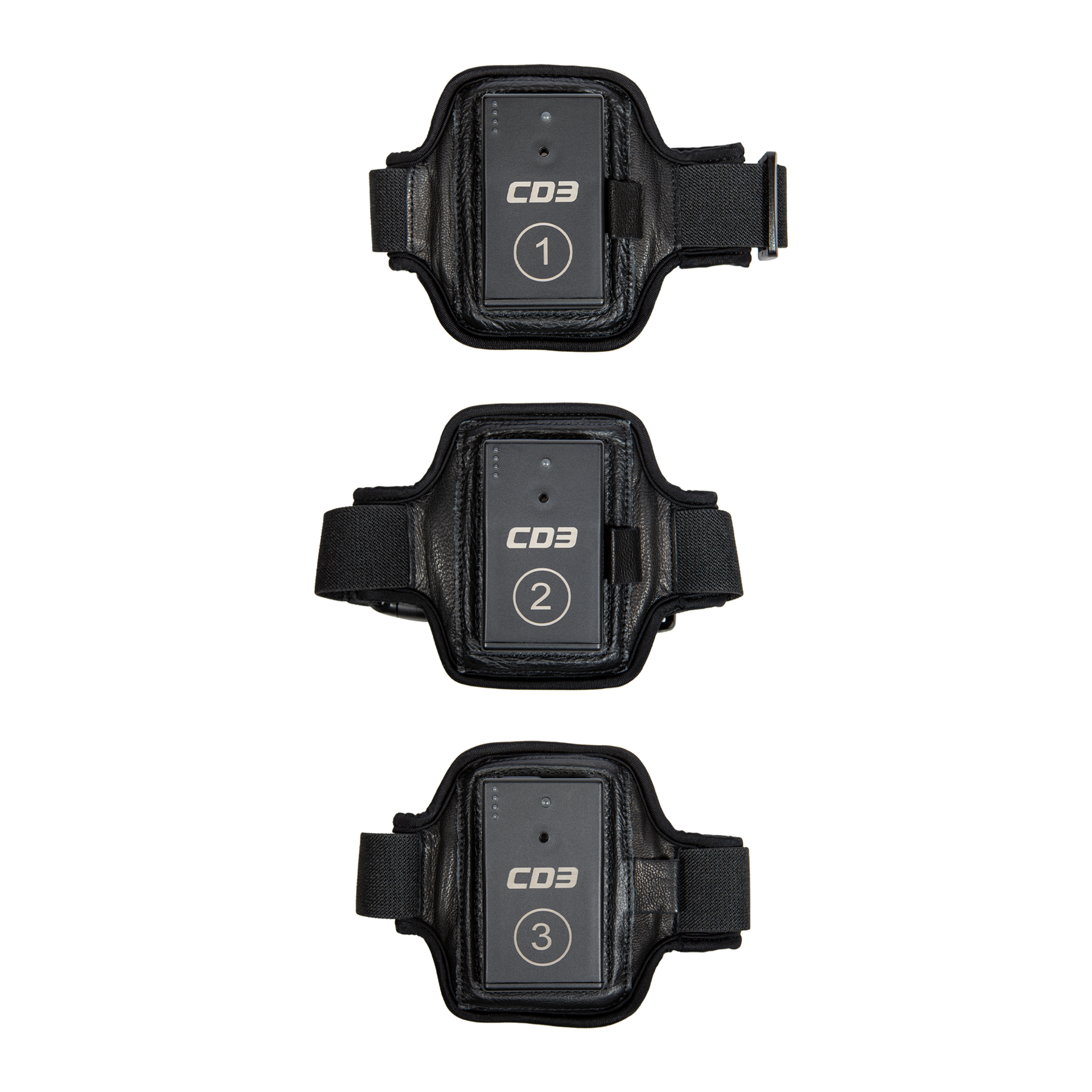

  • Configurations: Models come in SF (Single Frequency, Single Device) or MF (Multi-Frequency, Multi-Device) in sets of 3 or 5; Identifying arm bands are inluded in MF sets
  • Activation: 2-3 seconds on and off via magnetic key (2 included per device) with audio test/warning
  • Duration of stimulation: 90 minutes with audible sound during activation
  • Duration of charge: from 24 hours (standby mode) to months
  • Battery: 3.7 Volt Lithium Ion
  • Charge time: 2 hours from zero, Micro-Processor good for 2,000 recharges

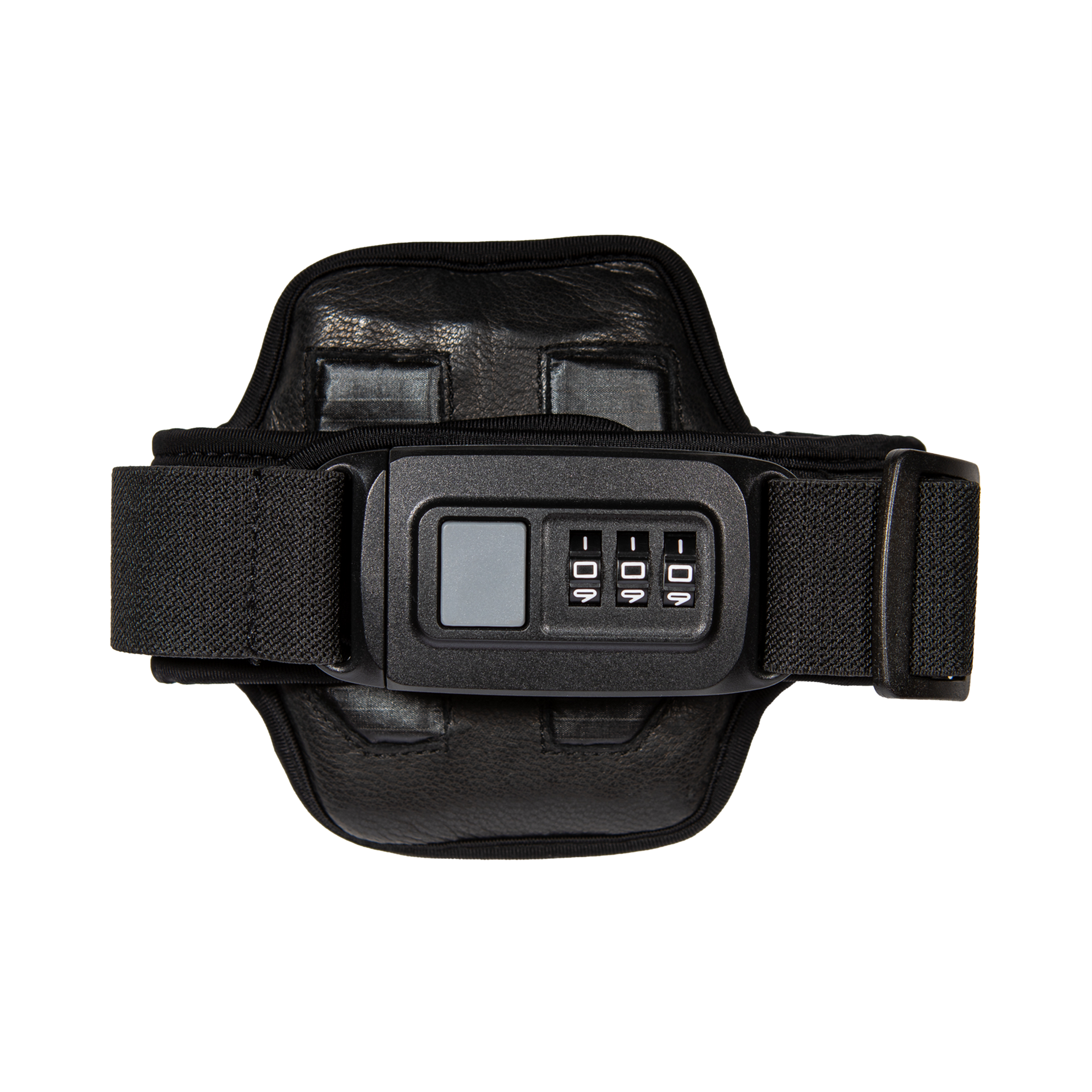

  • Locking mechanism: Snap-type with 3-digit combination
  • Remote control frequency: LoRA digital communication, Frequency Hopping from 470-510 MHz
  • Remote control range: 2 included with 150 yards (500 feet) line of sight range
  • Remote control battery: Internal Lithium Ion
  • Maximum Voltage: 324-362V (cannot go above 380V)
  • Maximum Current: 0.72-1.2A
  • Pulse Duration (μS): 114-116 (.000115 second)
  • Pulse Charge (μC) 84-125 (.000125 Amp-Second)
  • Pulse repetition rate (pps): 29-30
  • Duty Cycle (%): 0.348
  • Operating Temperature: 14°F to 122°F (-10°c to 50°c)
